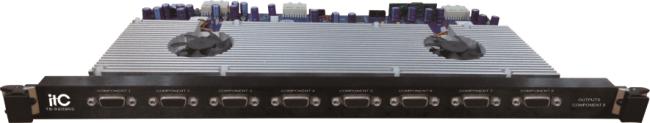

8 Channel Component Video Output Card
NV-MCMC-MCS-CC763
Description
Specifically designed for the intelligent HD Mixed Matrix Switch, it supports VGA, CVBS, YPbPr signal output, and 1080P HD digital signals. With highly integrated board design. You can select any number according to your demands, which brings great convenience for applications and maintenance.
Featured
- 8- channel DB15 interface output.
- Optional VGA, CVBS, YPbPr, signal input.
- Maximum resolution rate: HDPC: 1920 x 1200P@60_24bit, HDTV: 1920 x l080P@60_36bit.
- Plug and play.
Specification
| Model | NV-MCMC-MCS-CC763 |
| Composite Video | |
| Gain | 0dB |
| Bandwidth | 150MHz @ -3dB |
| Differential Phase Error | 0.1º, 3.58-4.43 MHz |
| Differential Gain Error | 0.1%, 3.58-4.43 MHz |
| Signal Strength | 1Vpp: Composite Video (CVBS) |
| Mini/Max Electrical level | Analog signal: -2V/+2V |
| Input Impedance | 75Ω |
| Return Loss | <-30dB@5MHz |
| Component Video YPbPr | |
| Gain | 0dB |
| Bandwidth | 150MHz @ -3dB |
| Differential Phase Error | 0.1º, 3.58-4.43 MHz |
| Differential Gain Error | 0.1%, 3.58-4.43 MHz |
| Signal Strength | 1Vpp: (Y in the Component Video)
0.3Vpp: (Pb Pr/CbCr in the Component Video) |
| Mini/Max Electrical level | Analog signal: -2V/+2V |
| Input Impedance | 75Ω |
| Return Loss | <-30dB@5MHz |
| VGA Video | |
| Gain | 0dB |
| Bandwidth | 380 MHZ |
| Signal Strength | 0.63Vpp – 0.9Vpp |
| Mini/Max Electrical level | RGB Signal 0V/1.0V; HV Signal 0V/5.0V |
| Input Impedance | 75Ω |
| Return Loss | <-30dB@5MHz |
| Max Resolution Support | HDTV: 1920 x 1080P@60_36bit |
| OTHERS | |
| Max consumption | 25W |
| Product Weight | 1.5kg |
