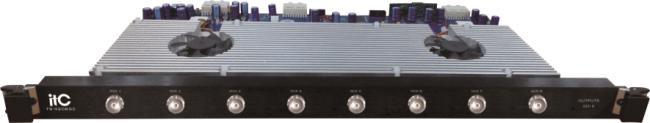

8 Channel SDI Output Card
NV-MCMC-MCS-SC767
Description
Specifically designed for the intelligent HD Mixed Matrix Switcher, it supports 8-channels SDI audio and video signal output, supporting the transmission of a digital HD 1080P signal, with highly integrated board design. You can select any number of card arbitrarily to your demands, which brings great convenience for applications and maintenance.
Featured
- Bandwidth is from 19Mbps to 2.97Gbps.
- Adopt SYV75-5 cable whose longest output distance can reach 100m.
- Compatible with various kinds of SDI signals, including SD/HD/3G-SDI (Auto adaptable).
- The MAX support DPI is 1080P and is completely compatible with HDTV.
- Plug and play, very convenient
Specification
| Model | NV-MCMC-MCS-SR766 |
| Output | 8-Channel SDI signal |
| Port | Female port BNC connector |
| Gain | 0dB |
| Lock Rate | Automatic |
| Operation Standard | SMPTE 292M, SMPTE 259M, SMPTE 242M, ITU-RBT.601, ITU-RBT.1120 |
| Input Return Loss | <-14dB @ 1MHz – 1.5 GHz |
| Output Return Loss | <-12dB @ 1MHz – 1.5 GHz |
| Maximum Rate | 2.97Gbps |
| Data Type | 8 or 10 bit |
| Input and Output Level | 0.80Vp-p+/-10% |
| Input and Output Impedance | 75Ω |
| Balanced Type | Automatic |
| Maximum Output Distance | 100m |
| Specifications | |
| Max power consumption | 20W |
| Product Weight | 1.2kg |
