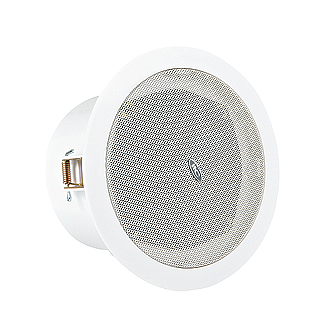

Ceiling Speaker (3W-6W)
NV-PASP-CGSP-F221
Description
The NV-PASP-CGSP-F221 is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distances and allows easy parallel connection of multiple loudspeakers.
The built-in 6” speaker driver is designed of wide frequency response 100-16KHz, the multiple power taps 3W & 6W are helpful for different applications varies from room size and ambient noise surroundings. The Aluminum grille, ABS baffle, and ABS back cover are painted in attractive white color. Its spring clip clamp makes the easy and secure installation.
It is an ideal choice for industrial and commercial applications in hotel, school, office, and factory where background music and paging is needed.
Features
- Built-in 100v/70v transformer
- In-ceiling type full range
- 6” speaker unit
- Power taps 6W & 9W @100V
- Aluminum grille, ABS baffle and ABS back cover
- Paint in white color
Specifications
| Model | NV-PASP-CGSP-F221 |
| Power Taps @100V | 3W, 6W |
| Power Taps @70V | 1.5W, 3W |
| Impedance | Com/ 3.3KΩ/ 1.7 KΩ |
| SPL(1W/1M) | 90dB |
| Max. SPL (Rated W/1M) | 98dB |
| Frequency Response (-10dB) | 100-16KHz |
| Finish | Baffle: Steel ,white Grille: Aluminum , white |
| Speaker Driver | 6″ x 1 |
| Cutout Size | 190mm |
| Dimensions | 208 x 105mm |
| Weight | 0.9Kg |
| Mounting | Flush-mount dog ears |
