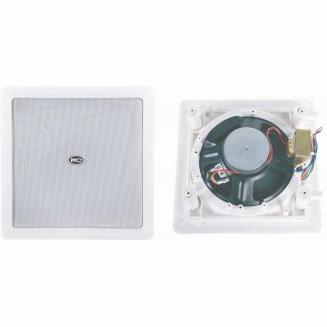

In-Wall Loudspeaker (Constant Resistance)
NV-PASP-WSP-R274
Description
In-Wall Loudspeaker (Constant Resistance)
Specifications
| Model | NV-PASP-WSP-R274 |
| Power Taps @100V | 1.25W, 2.5W, 5W, 10W |
| Power Taps @70V | 0.62W, 1.25W, 2.5W, 5W |
| Impedance | Black: Com Blue:8KΩ Red:4KΩ |
| Green:2KΩ White:1KΩ | |
| SPL(1W/1M) | 89dB |
| Max. SPL (Rated W/1M) | 99dB |
| Frequency Response (-10dB) | 80-20KHz |
| Finish | Baffle: ABS, White |
| Grille: Steel, White | |
| Speaker Driver | 6″ x 1 |
| Cutout Size | 190 x 190mm |
| Dimensions | 220 x 220 x 75mm |
| Weight | 1Kg |
| Mounting | Flush-mount dog ears |
