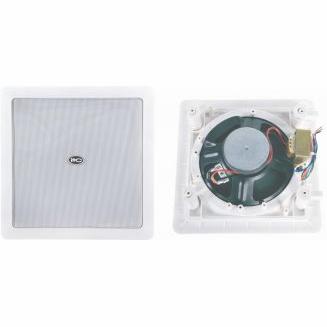

In-Wall Loudspeaker (Constant Resistance)
NV-PASP-WSP-R276
Description
In-Wall Loudspeaker (Constant Resistance)
Specifications
| Model | NV-PASP-WSP-R276 |
| Power Taps @100V | 1.87W, 3.75W, 7.5W, 15W |
| Power Taps @70V | 0.93W, 1.87W, 3.75W, 7.5W |
| Impedance | Black: Com Blue:5.3KΩ Red:2.6KΩ |
| Green:1.3KΩ White:670Ω | |
| SPL(1W/1M) | 90dB |
| Max. SPL (Rated W/1M) | 102dB |
| Frequency Response (-10dB) | 80-20KHz |
| Finish | Baffle: ABS, White |
| Grille: Steel, White | |
| Speaker Driver | 8″ x 1 |
| Cutout Size | 225 x 225mm |
| Dimensions | 255 x 255 x 80mm |
| Weight | 1.2Kg |
| Mounting | Flush-mount dog ears |
