NV-ADA-MIX-FP38

Descriptions:

The FP series amplifier is a 2U mixer amplifier featuring 70V, 100V, and 4-16ohm speaker

outputs & 4 universal balanced XLR mic inputs with phantom power.

The amplifier rated power range is from 60W.

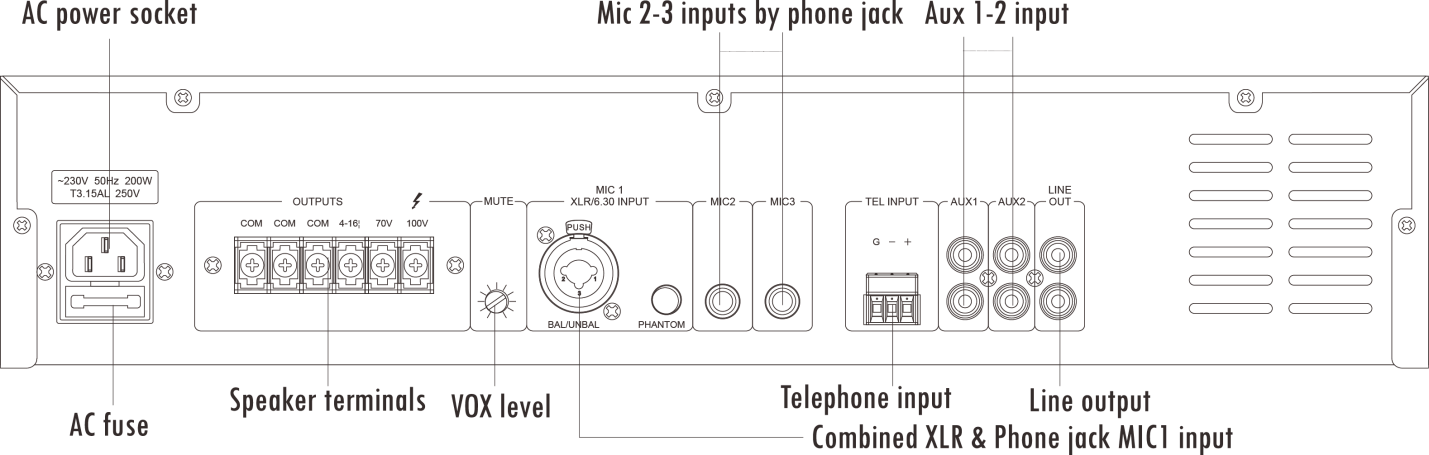

There are 4 audio source selectors on the front panel. 4 Aux inputs by dual RCA type are

located on the rear panel. Mic 1-4 with Vox priority selectors. The amplifier is also built-in

pre-announcement chime with volume control and remote chime trigger.

The REC output for tape recorder and PRE output, AMP input for adding extra signal processor

like mixer, graphic equalizer.

Volume control over Mic1-4, aux, master & overall treble/bass controls are provided.

Complete protection includes short circuit and thermal protection, current limiter and

overloading.

* 2U tabletop and rack-mounted design.

* Rated power output from 350W.

* 4 balanced XLR microphone inputs with phantom power and gain control.

* 4 dual RCA line inputs.

* 70V, 100V, and 4-16Ω speaker terminals.

* Mic 1-4 with selectable priority over other inputs.

* Built-in chime, 2/4 tone selector, and remote trigger.

* XLR balanced line output for the extra power amplifier.

* REC output for the tape recorder.

* PRE Output and AMP input for the extra signal processor.

* Master, Mic1-4, Aux volume control, treble, and bass control.

* Indications include power and output level meter.

* AC 110V or 230V and DC 24V operation.

Optional

* DC 24V.

* Panel with/without a handhold.

* Faults monitoring module, it can output short circuit signal to achieve main/spare

amplifier switch.

model	NV-ADA-MIX-FP38	NV-ADA-MIX-FP39
muting Function	350W	500W
Speaker Outputs	70V, 100V & 4~16Ω	50V, 70V, 100V & 4~16Ω
Input Sensitivity & Impedance	MIC 1, 2, 3: 5mV/600Ω, Unbalanced phone jack input	MIC 1, 2, 3, 4: ±2.5mV/2KΩ, Balanced XLR input
	AMP: 1000mV/10KΩ, Unbalanced RCA input
	TAPE, CD, TUNER, LINE INPUT(AUX): 350mV/10KΩ,
	Unbalanced RCA input
Output Sensitivity & Impedance	REC OUT: 200mV/470Ω, Unbalanced RCA output
	PRE OUT: 1000mV/470Ω, Unbalanced RCA output
Overload	MIC 1, 2, 3, 4: >15dB
Electromotive Force	AUX: >18dB
Tone	Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz
Frequency Response	50Hz~16KHz (+1dB, -3dB)
S/N Ratio	MIC 1, 2, 3, 4: 66dB; AUX: 76dB
THD	Less than 0.1% at 1KHz, 1/3 rated power
Muting Function	MIC 1~4 overrides other input signals
	with 30 dB attenuation
	Set the priority for MIC1~4 by the “MIC PRIORITY”
	switch on the rare panel ( Priority function available
	when it is”ON”, the priority will be on lower level
	same as AUX input when it is “OFF”)
Gain Control	±2.5mV~±75mV at 30dB
Crosstalk	±50dB
Phantom Power	+48V with LED indicator
Chime	2 tone and 4 tone options
Cooling	Fan automatically start up when temp
	reaches 55℃ ( Equipment below 120W
	will convect and cool button-up)
Protection	High temp, overload & short-circuit
Power Supply	~110V-230V 50/60Hz
Power Consumption	400W	750W
Dimensions	483 x 358 x 88mm	483 x 359 x 132mm
Weight	13.52Kg	17.22Kg
Finish	Panel: aluminum plate, black
	Case: SPCC Panel
