Description

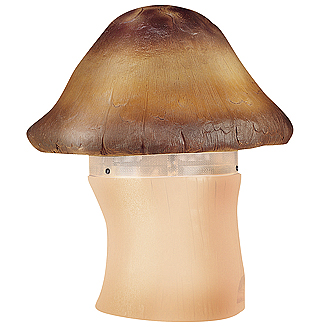

The TNV-PASP-GDSP-331 is a landscape garden speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distances and allows easy parallel connection of multiple loudspeakers.
The built-in 6.5” +1.5” two-way speaker drivers are designed for wide frequency response 120-15kHz, the multiple power taps of 12.5W & 25W could meet different applications varies from room size and ambient noise surroundings.
The fiber-glass enclosure is of yellow-gray color and of weatherproof and heavy damage proof finish. Easy and secure wall mount installation in the outdoor area.
It is the ideal choice for park, playground, swimming pool and garden, etc outdoor applications where background music and paging are needed. It is designed for the IP66 waterproof level, so it could be directly exposed to outdoor severe environment, the organic resin material is strongly resistant to cold, snow, ice, high temp, and sunshine.
Features
Specifications
Model | NV-PASP-GDSP-331 |
Power Taps @100V | 12.5W, 25W |
Power Taps @70V | 6.3W, 12.5W |
Impedance | Black: Com White: 800Ω Green: 400Ω |
SPL(1W/1M) | 95dB |
Max. SPL (Rated W/1M) | 107dB |
Frequency Response (-10dB) | 120-15KHz |
Finish | Organic resin |
Speaker Driver | 6.5″ x 1 1.5″ x 1 |
IP Rate | IP x 6 |
Cutout Size | 200mm |
Dimensions(mm) | H:480 |
Weight | 5.7Kg |
